Device overview

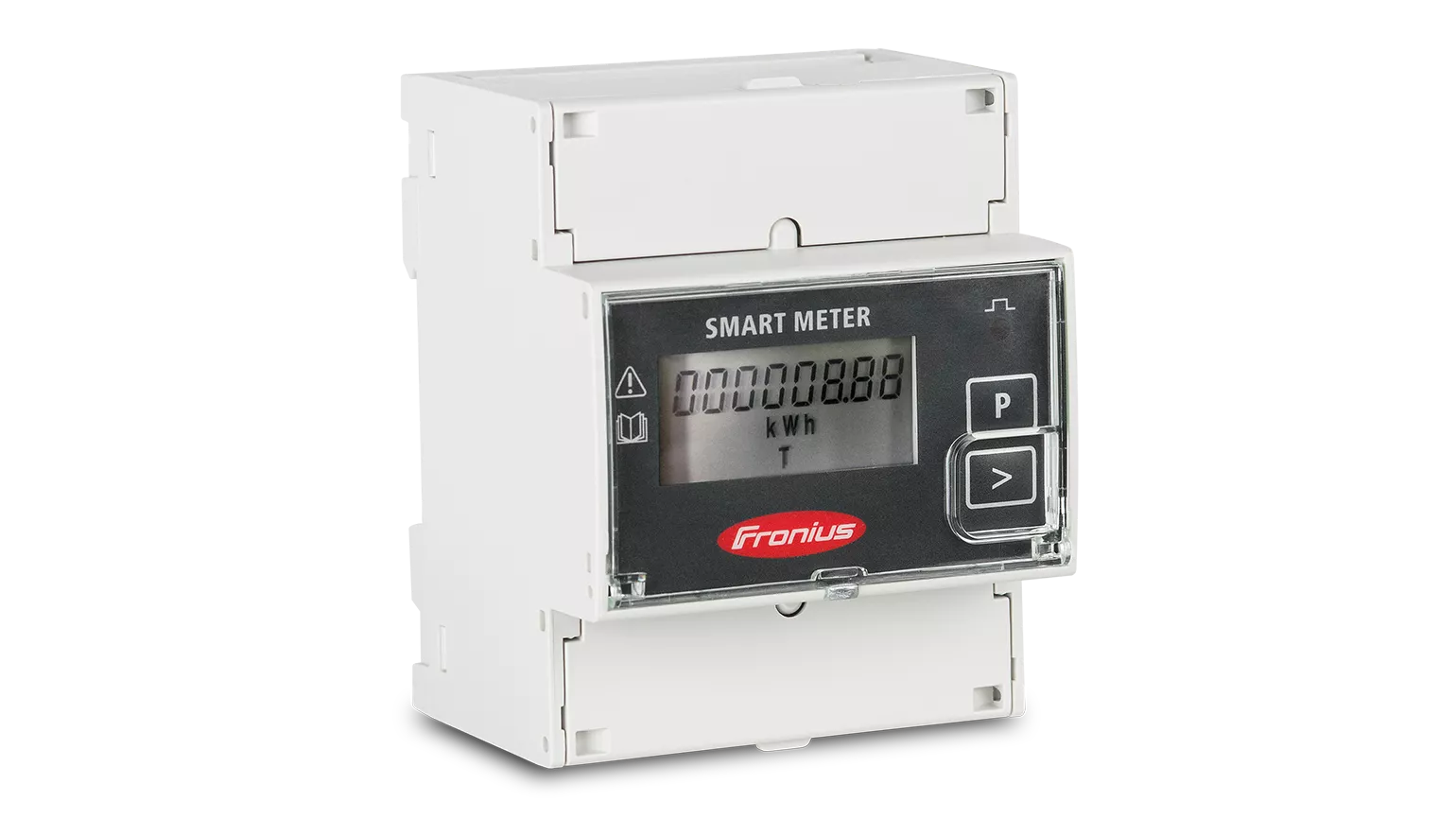

The Fronius Smart Meter 63A-3 is a three-phase whole-current electricity meter for Fronius solar installations. It measures household load behavior and bidirectional energy flow at either the grid feed-in point or a consumption point, then passes that information to a Fronius inverter or Fronius Datamanager over Modbus RTU / RS485.
For comparison work, the key distinction is that this is not a standalone Wi-Fi meter. It is a DIN-rail meter inside the Fronius system architecture: the meter measures import, export, load, and phase data locally, while the connected Fronius inverter or Datamanager handles commissioning, visualization, Solar.web, and Home Assistant visibility.
Core specifications
- Device type: three-phase energy meter
- Phase support: three-phase
- Maximum current: 3 x 63 A
- Nominal voltage: 400-415 V
- Accuracy: Class 1 / Class B active energy accuracy under EN 50470
- Installation: indoor DIN-rail mounting, 4 DIN modules
- Communication: Modbus RTU / RS485 to Fronius inverter or Datamanager
- Measurement role: bidirectional grid feed-in or consumption-point measurement
Installation and measurement setup
The 63A-3 is a whole-current meter, so it is wired directly into the measured circuit rather than using external current transformers. Fronius' operating instructions describe a hard-wired installation with a nearby disconnecting device and overcurrent protection rated for a maximum of 63 A.
This makes it best suited to Fronius systems where the measured site current fits the 63 A direct-connection envelope. For higher-current installations, Fronius offers other Smart Meter families that use current transformers.
Compatibility and data access
The meter connects to Fronius SnapINverter, GEN24, or Datamanager-based systems through RS485 / Modbus RTU. Fronius documentation positions it as a key input for Solar.web visualization, self-consumption optimization, and energy-management functions involving Fronius batteries, Wattpilot, or Ohmpilot.
Home Assistant support is available through the Fronius integration when the meter is connected behind a supported Fronius inverter or datalogger with Solar API access enabled. That makes the practical integration path system-level local polling through the inverter or datalogger, not a direct IP connection to the 63A-3 meter itself.
Best fit
Choose this meter when a three-phase Fronius PV system needs official Fronius import/export measurement, self-consumption data, battery or load-management inputs, and Solar.web visibility. It is especially relevant for Australia and New Zealand contexts where Fronius lists the Smart Meter 63A-3 / 65A-1 range.
Avoid treating it as a generic standalone smart meter. If the site is outside the supported regional range, requires CT-based high-current measurement, or needs Ethernet / Wi-Fi directly on the meter, compare the Fronius Smart Meter TS, IP, or WR families instead.
