Device Overview

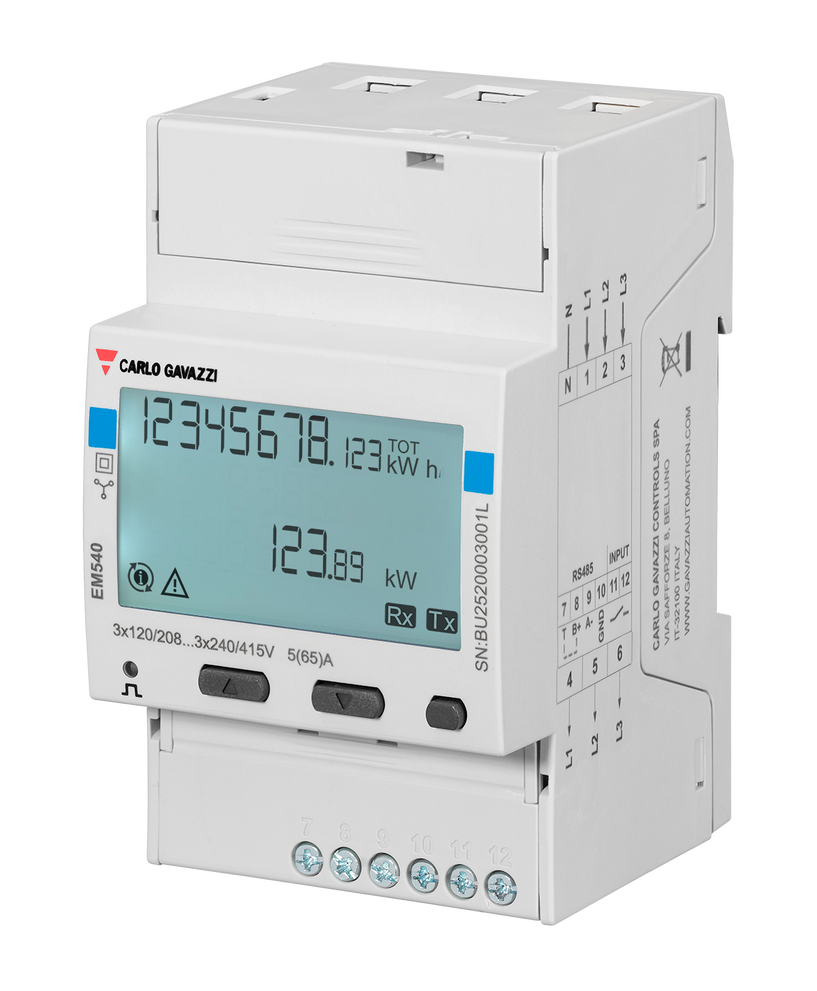

Carlo Gavazzi EM540 is a compact direct-connected energy analyzer for two-phase and three-phase low-voltage switchboards. The EM540DINAV23XS1X variant is the RS485 Modbus RTU model with direct current inputs up to 65 A, so it is most useful where a DIN-rail meter can be installed directly in the panel without external CTs.
Core Field Fit
This record is scoped strictly as an energy meter. The most important buyer-facing fields are direct 65 A current handling, two/three-phase system support, IEC Class 1 active-energy and Class 2 reactive-energy accuracy, local RS485 Modbus RTU access, and imported/exported active-energy measurement. The exact XS1X model is non-MID; MID-certified EM540 variants use different suffixes.
Installation And Measurement
EM540 mounts on a DIN rail in a low-voltage switchboard and uses direct current connection rather than split-core or external xxx:5 A CTs. Carlo Gavazzi documents two-phase 3-wire, three-phase with neutral, three-phase without neutral, and wild-leg three-phase delta contexts. The 5(65) A input has a 0.25 A minimum current and 20 mA start-up current.
Connectivity And Integrations
The selected model communicates over RS485 Modbus RTU. That makes it a good fit for local gateways, building-management systems, inverter/gateway integrations, and Home Assistant setups that can poll Modbus registers through suitable RS485 hardware. There is no vendor cloud requirement for the core metering function, and no native Home Assistant discovery is implied.
Solar And Load-Control Relevance
Carlo Gavazzi documents consumption and generation energy metering, imported/exported active-energy registers, and Modbus data use for control actions such as avoiding feed-in to the grid in photovoltaic installations with storage. The meter also exposes active, reactive and apparent power/energy, demand, power factor, frequency, and current/voltage THD to the 15th harmonic.
Strengths And Limits
Strengths include a compact 3-DIN form factor, direct 65 A wiring, local Modbus RTU, bidirectional measurement, and official Carlo Gavazzi regional support. Limits: this exact XS1X is non-MID, it is not an app-first home monitor, it does not include Wi-Fi or cloud dashboards by itself, and installations above 65 A should use a CT-based meter such as EM530 or another appropriately rated model.
Sources
Reviewed on 2026-10-03: Carlo Gavazzi official EM540DINAV23XS1X product page, EM540 datasheet dated 2025-04-01, EM530/EM540 user manual dated 2026-03-13, EM500 Modbus communication protocol, and Home Assistant Modbus documentation.
