Device overview

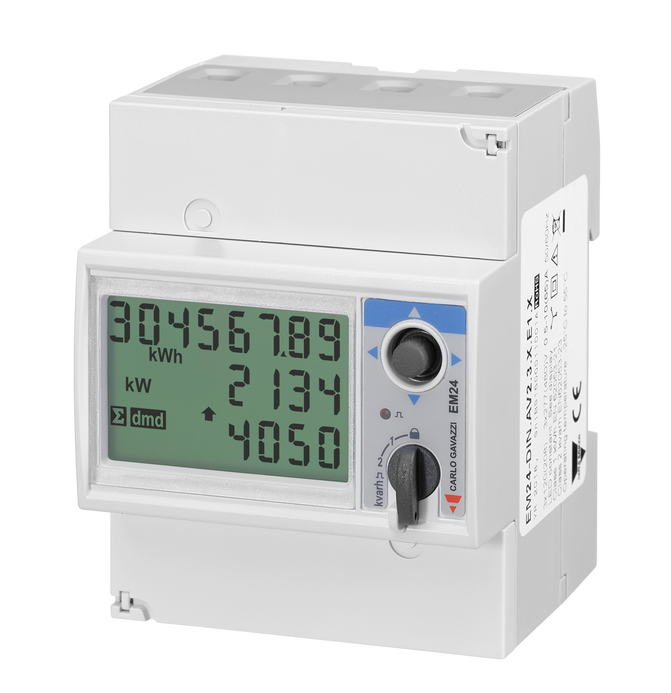

The Carlo Gavazzi EM24 is a DIN-rail energy analyzer for installer-led switchboard, sub-metering, solar, and building-energy applications. This page covers the exact EM24DINAV93XISX order code: AV9 direct-current inputs, 3X voltage/input family, IS RS485 Modbus RTU communication, and a final X suffix identifying a non-MID model.
Installation and electrical fit
This model is a four-DIN-module indoor device for low-voltage electrical cabinets and uses a direct 10(65) A input. It does not use external current transformers. The datasheet's 92 A value is a crest-factor peak boundary, not a continuous-current rating.
The official wiring table supports single-phase two-wire (1P2W), two-phase three-wire (2P3W), and three-phase four-wire (3P4W) configurations for this IS variant. It explicitly excludes IS from the three-phase three-wire (3P3W) AV9 diagram, so installers should not generalize the wiring support from other EM24 communication variants.
Accuracy and metering
For this exact non-MID X-suffix model, store active energy Class 1 under EN IEC 62053-21 and reactive energy Class 2 under EN IEC 62053-23. Carlo Gavazzi also sells separate EM24 MID suffixes, but their Class B certification should not be attributed to EM24DINAV93XISX.
The meter provides electrical variables plus total and partial active/reactive energy. Positive/import and negative/export registers make it suitable for consumption and solar import/export visibility when the wiring, direction, and Modbus register mapping are configured correctly.
Communication and Home Assistant
Core metering is local and does not require a Carlo Gavazzi cloud service. The IS interface provides two-wire RS485 Modbus RTU, so a PLC, energy-management controller, serial gateway, or compatible RS485 adapter can poll the device.
Home Assistant compatibility is standards-based through its generic Modbus integration. It requires suitable RS485 hardware and manual register configuration; this is not native discovery or a Carlo Gavazzi-specific Home Assistant integration.
Buyer and sourcing notes
The official Carlo Gavazzi route provides product details, documentation, downloads, and regional contact channels. It does not expose a verified public checkout price or stock state. Before ordering, confirm the full EM24DINAV93XISX suffix, local certification requirements, supply voltage, distributor stock, and whether a separate MID-certified suffix is required for the intended billing or compliance use.
