Device Overview

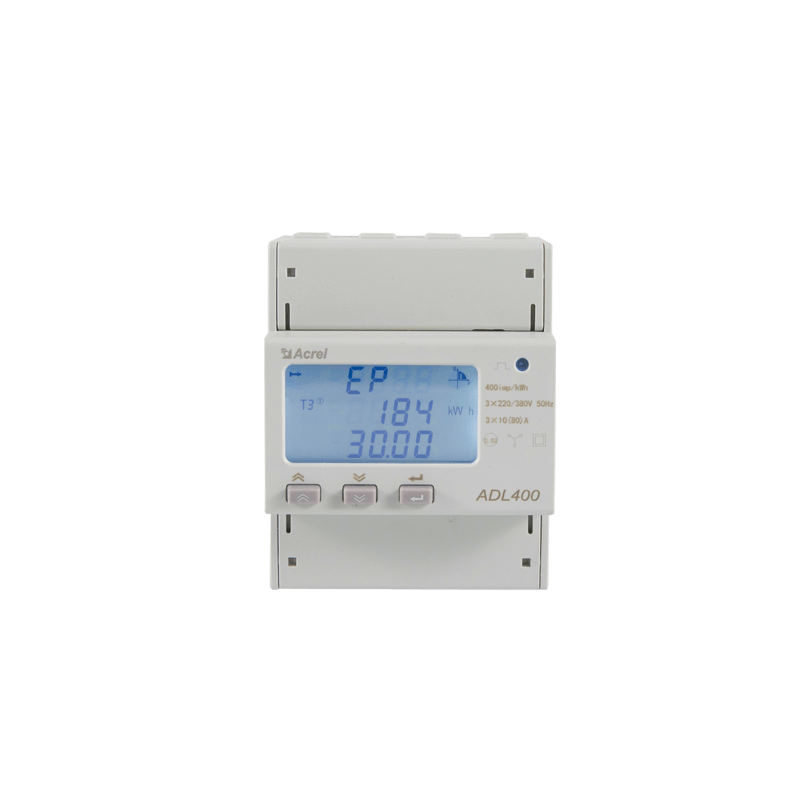

Acrel ADL400 is a three-phase DIN-rail energy meter aimed at power systems, industrial and mining enterprises, public facilities, EV charging piles, and centralized building or factory metering. It is an energy-meter record only: it is not a solar inverter, battery-storage system, EV charger, or standalone gateway.
Core Characteristics
The official Acrel ADL400 page describes measurement of voltage, current, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy, and harmonic content. The official manual also documents forward and reverse active/reactive energy, making the meter useful where import/export visibility is needed.
Installation And Measurement

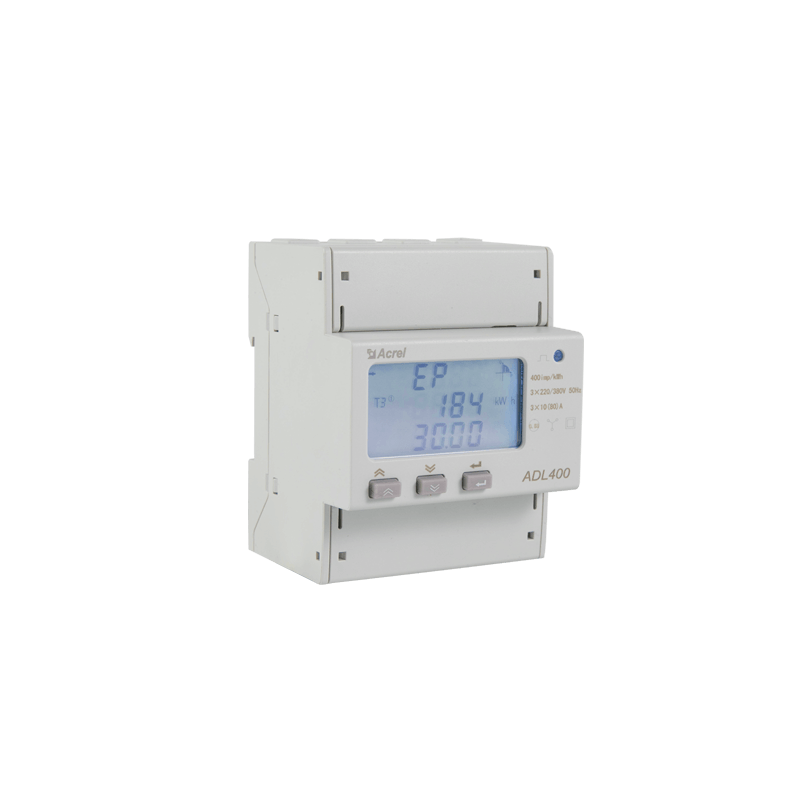

ADL400 is a DIN-rail mounted three-phase meter. Acrel documents both three-phase three-wire and three-phase four-wire specifications, with reference-voltage variants including 3 x 100 V, 3 x 380 V, 3 x 57.7/100 V, and 3 x 220/380 V. The reviewed sources list input-current variants of 3 x 1(6) A and 3 x 10(80) A, with wiring examples for direct connection and CT connection.
Communication And Integration
The meter includes RS485 communication and Modbus RTU support. That makes it suitable for local SCADA, energy-management systems, gateways, and Home Assistant installations through a compatible RS485/Modbus path. There is no evidence that ADL400 requires an Acrel cloud service for core metering.
Selection Notes
ADL400 is most relevant when the buyer needs a compact three-phase DIN-rail meter with local Modbus data, Class 0.5 active-energy accuracy, reverse-energy readings, and EV-charging or building-metering fit. The exact direct-versus-CT configuration should be confirmed before purchase because Acrel documentation includes both 3 x 10(80) A direct-current context and CT-wiring examples.
